碳化硅簡介
?
? ? 碳化硅是用石英砂、石油焦、木屑等原料在電阻爐內經高溫冶煉而成。目前我國工業生產的碳化硅分為黑色碳化硅和綠色碳化硅兩種，均為六方晶體，比重為3.203.25，顯微硬度為28403320kg/mm2。
?
? ? 黑碳化硅和綠碳化硅都屬α-SiC。黑碳化硅含SiC約98.5，其韌性高于綠碳化硅，大多用于加工抗張強度低的材料，如玻璃、陶瓷、石材、耐火材料、鑄鐵和有色金屬等。綠碳化硅含SiC99以上，自銳性好，大多用于加工硬質合金、鈦合金和光學玻璃，也用于珩磨汽缸套和精磨高速鋼刀具。此外還有立方碳化硅，它是以特殊工藝制取的黃綠色晶體，用以制作的磨具適于軸承的超精加工，可使表面粗糙度從Ra320.16微米一次加工到Ra0.040.02微米。
?
碳化硅理化指標
?
<黑
碳
化
硅
粒度范圍
SIC
游離碳C
Fe203
12#-90#
98.5
0.2
0.6
100#-180#
98
0.3
0.8
220#-240#
97
0.3
1.2
綠
碳
化
硅
20#-90#
99
0.2
0.2
80#-100#
98.5
0.25
0.2
220#-240#
97.5
0.25
0.7
W63-W20
97
0.3
0.7
W14-W10
95.5
0.3
0.7
W7-W5
94
0.3
0.7
碳化硅用途
?
? ? 碳化硅主要有四大應用領域，即：功能陶瓷、高級耐火材料、磨料及冶金原料。碳化硅粗料已能大量供應，不能算高新技術產品，而技術含量**的納米級碳化硅粉體的應用短時間不可能形成規模經濟。
?
? ? 1、作為磨料，可用來做磨具，如砂輪、油石、磨頭、砂瓦類等。
?
? ? 2、碳化硅作為冶金脫氧劑和耐高溫材料。
?
? ? 3、高純度的單晶，可用于制造半導體、制造碳化硅纖維。
?
聯系方式
?
業務經理：張甜
郵 ? 箱 qq.com
地 ? 址：鞏義市杜甫路街道辦和義外溝村
?
英文翻譯
?
Introduction of silicon carbideSilicon carbide is using quartz sand and petroleum coke or coal tar, wood chips such as raw materials in the Canon of high-temperature resistance furnace smelting.At present, the industrial production of silicon carbide can be divided into two black silicon carbide and green silicon carbide, are the six-party crystal, specific gravity of 3.20 3.25, the microhardness of 2840 3320 kg/was.Black silicon carbide and green silicon carbide is alpha SiC. black silicon carbide containing SiC by about 98.5, the toughness higher than that of green silicon carbide, mostly used for processing low tensile strength of material, such as glass, ceramics, stone, refractory material, cast iron and nonferrous metal, etc. the green silicon carbide containing SiC99 above, good self-sharpening, mostly used for processing hard alloy, titanium alloy and optical glass, also used for honing cylinder jacket and fine grinding HSS cutting tools.And cubic silicon carbide, it is a special process for making yellow crystals, to make the abrasive tool suitable for bearing the superfinishing, can make the surface roughness from a processing Ra32 0.16 microns to Ra0.04 0.02 microns.7# Version: 1.0 StartHTML: 000****107 EndHTML: 000****920 StartFragment: 000****694 EndFragment: 000****906Introduction of silicon carbideSilicon carbide is using quartz sand and petroleum coke or coal tar, wood chips such as raw materials in the Canon of high-temperature resistance furnace smelting.At present, the industrial production of silicon carbide can be divided into two black silicon carbide and green silicon carbide, are the six-party crystal, specific gravity of 3.20 3.25, the microhardness of 2840 3320 kg/was.Black silicon carbide and green silicon carbide is alpha SiC. black silicon carbide containing SiC by about 98.5, the toughness higher than that of green silicon carbide, mostly used for processing low tensile strength of material, such as glass, ceramics, stone, refractory material, cast iron and nonferrous metal, etc. the green silicon carbide containing SiC99 above, good self-sharpening, mostly used for processing hard alloy, titanium alloy and optical glass, also used for honing cylinder jacket and fine grinding HSS cutting tools.And cubic silicon carbide, it is a special process for making yellow crystals, to make the abrasive tool suitable for bearing the superfinishing, can make the surface roughness from a processing Ra32 0.16 microns to Ra0.04 0.02 microns.Silicon carbide purposeSilicon carbide mainly has four major application fields, i.e functional ceramics, refractories, abrasives, metallurgical raw materials.Silicon carbide raw material supply can have a lot of, cant calculate high-tech products, and the application of high technology content of nano-sized sic powder short time cant form scale economy.1, as abrasive, abrasive tool can be used to do, such as grinding wheel, whetstone, grinding head, sand tile, etc.2, silicon carbide as metallurgical deoxidizer and high temperature resistant material.3, single crystals of high purity, can be used in the manufacture of semiconductor, the manufacture of silicon carbide fibers.
?

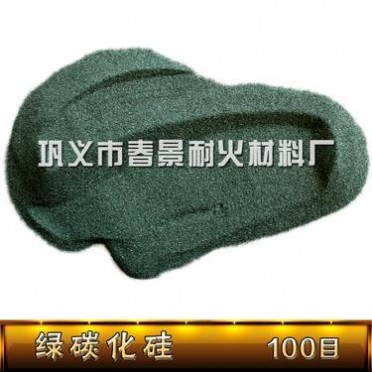

產品展示
?
